eHouse LAN (Ethernet)

• Events/Commands based actions
• programs/scenes for ON/OFF outputs and dimmers
• measurement and regulation programs
• advanced scheduler-calendar for unattended and cyclic operations
• IR codes database for remote control of each EthernetRoomManager from standard SONY (SIRC) Remote Controller
• IR codes database for remote control of external Audio/Video systems from ERM

• EthernetRoomManager Controller (ERM) - integrated control, management, regulation, IR remote control for Rooms, flats, etc.
• CommManager Controller (CM) - Gates, Gateways, Drives, Servos Control, integrated security system with SMS notification
• LevelManager Controller (LM) - variant of CommManager with single outputs, integrated security system with SMS notification
• eHouse PRO controller which can replace CommManager/LevelManager controller for larger and hybrid installations
• eHouse Software for Configuration, Remote Control, Graphical Visualization and control, Speech recognition, interfacing and integration to third party products

EthernetRoomManager (ERM)

• measurement, regulation and control light, temperature, voltage and other physical parameters
• on/off control (digital) outputs
• dimming LED lights
• programmable digital (on/off) inputs
• IR remote control of external Audio/Video system (IR transmissison)
• IR remote control of ERM (IR reception)
• outputs & dimmers programs&scenes (24)
• measurement, regulation programs (12)
• advanced calendar-scheduler for planed operations (128)
• IR control databases for Audio/Video systems (256)
• IR control databases for ERM (256)
• functionality based on events (commands)
• capable to send events to external ERMs or eHouse Hybrid architecture

ERM Hardware features

• 32 configurable digital outputs (on/off) with relay drivers
• 12 configurable digital inputs (on/off)
• 3 LED dimmers or RGB (Pulse Width Modulation)
• Infrared input and output (for external IR Panel)
• 10 ADC inputs for voltage, temperature, light measurement or any analog sensor (0,3v3)
• RTC for clock and scheduler-calendar
• stabilized power supply

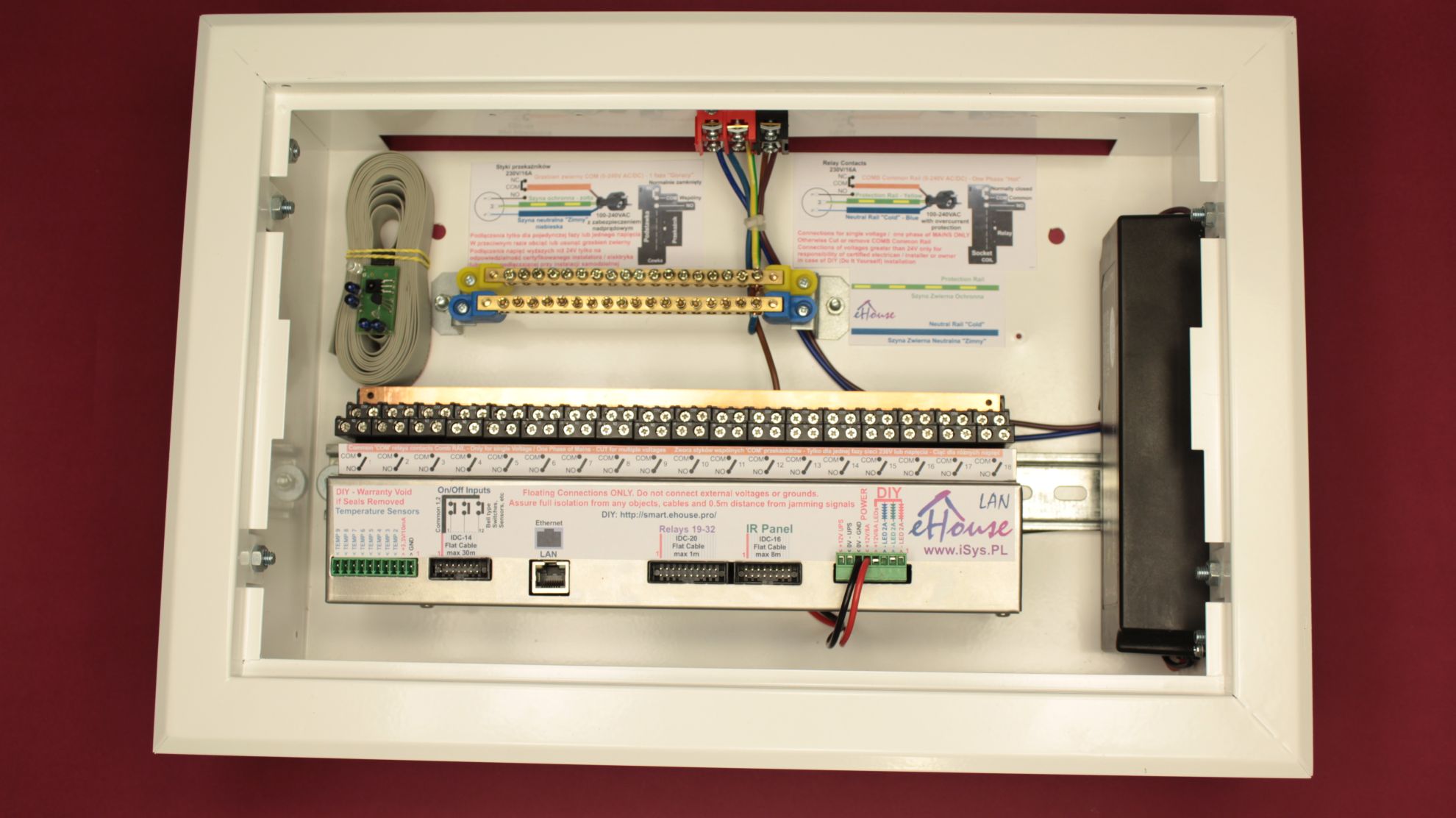

EthernetRoomManager variants

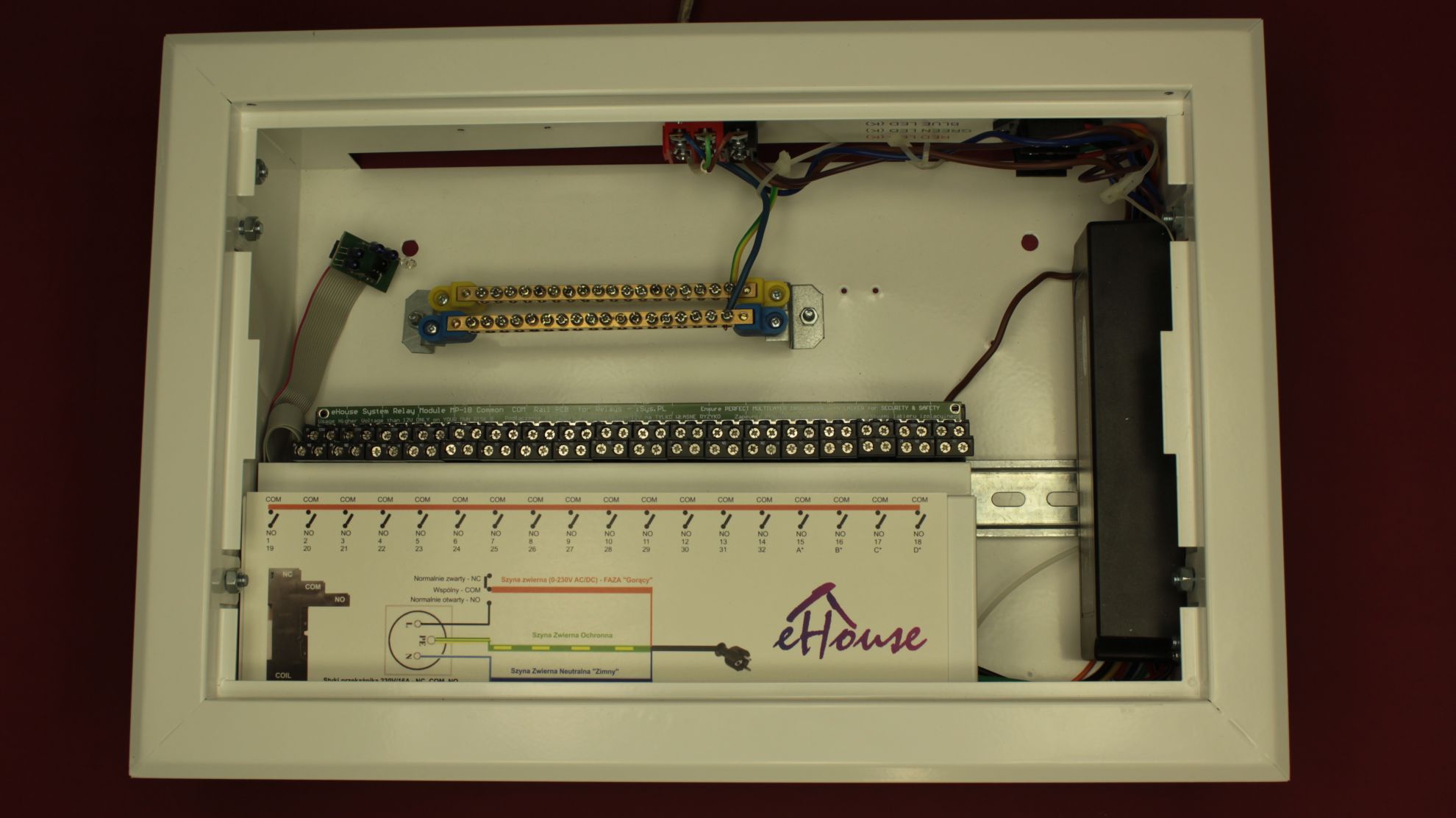

eHouse LAN switch-boards

• EthernetRoomManager controller
• Relay modules with DIN sockets and relays 230V/16A (18 or 36)
• Power supply for eHouse LAN and LED lights 12V/8A

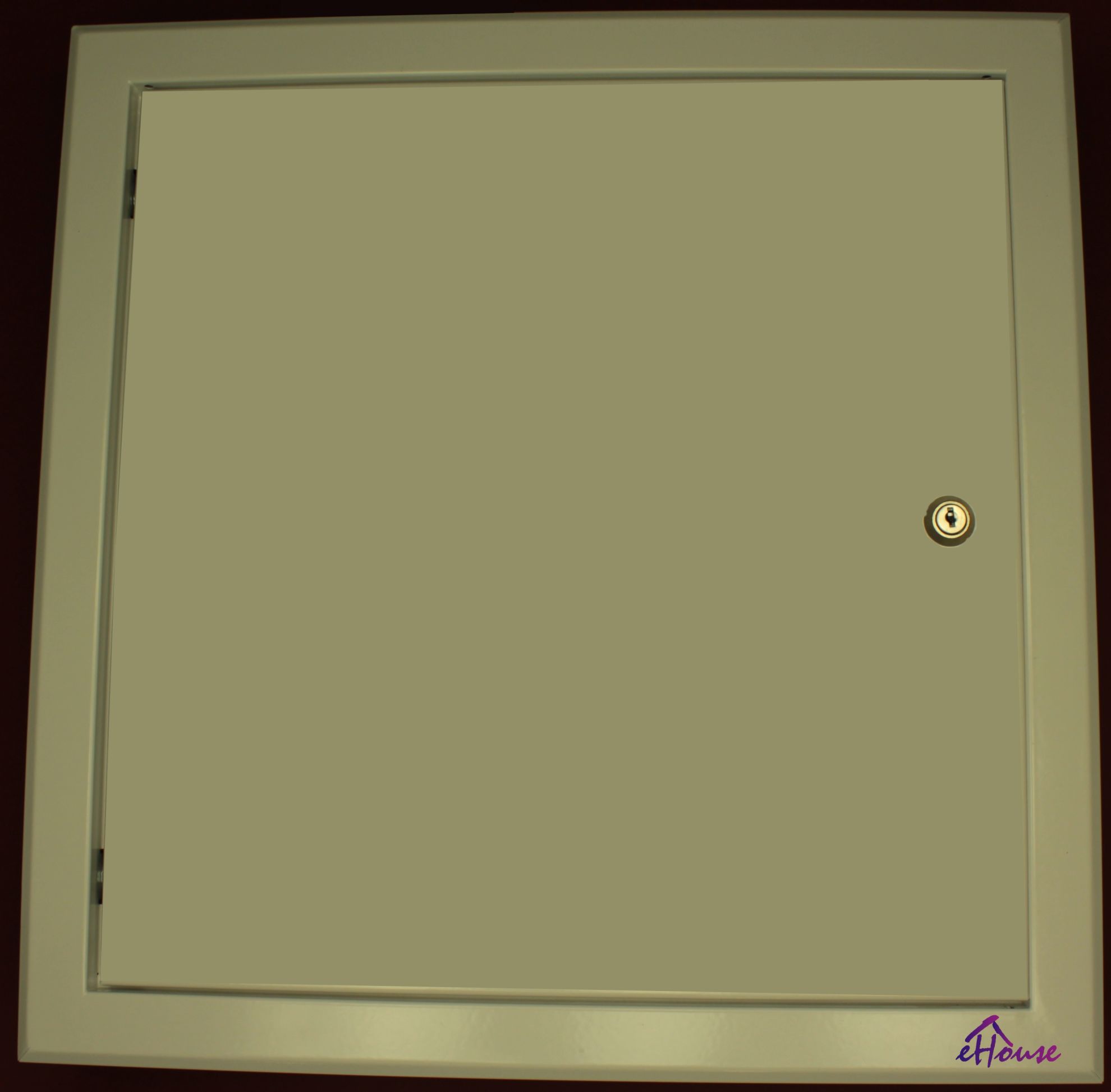

• Metal cover with key for closing and sealing
• IR external panel for remote control (TX, RX) and temperature, light measurement
• Low voltage flat cables for inputs (switches) and IR panel connections
• montage rails for fast and secure connection

CommManager (CM)/ LevelManager (LM)

• measurement, regulation and control light, temperature and other physical parameters
• control on/off (digital) outputs
• intelligent digital inputs (on/off) with security system functionality
• security zones (24) - contains mask for each sensor and each alarm outputs
• programs for drives, servos with security zone (24)
• measurement, regulation programs (12)
• advanced calendar-scheduler for planed operations (128)
• functionality based on events (commands)
• capable to send events to other ERMs or other eHouse architectures (Hybrid installation)

CM/LM Hardware features

• 70 digital outputs (on/off) with relay drivers for LM mode (single outputs)
• 35 drivers, gateways, gates outputs (on/off) with relay drivers for CM mode (double outputs)
• 48 digital inputs (on/off) with alarm functionality
• 15 ADC inputs for voltage, temperature, light measurement
• RTC for clock and scheduler-calendar
• stabilized power supply
• GSM module for SMS control and alarm notification (CM)
• Alarm, Warning, Early Warning, Monitoring outputs with relays (CM)
• RS-485 interface for supervising eHouse RS-485 system

Accessories:

• 18 professional relays 230V/16A with DIN/TH sockets (45mm insulation between electronics and 110-230V mains)
• PCB for direct connection to eHouse controllers (realizes internaly all 40 cable connections)
• common contact short rail (realizes all ~36 cable connections for one phase/voltage of power supply). It could be cut for multi-phase or voltage power supplies

Software:

• Windows - Configuration
• Java (Windows, Linux, and other with JAVA support): Graphical Visualization, Control and Management - via WiFi, Ethernet, Internet
• Android - Graphical Visualization, Control and Management, Speech recognition (voice control) - via WiFi, Internet, SMS
• Linux Server software (including Web Browser support) (x86,x64, ARM6, ARM7: 1,2,4 cores)
• Programming Libraries: C, Java, Java Android, C# (.Net, .Net CF), Delphi
• CorelDraw Scripts for creating individual Visualization views and templates
