eHouse RS-485 (Formerly eHouse One)

• access control, function limitation (RFID)
• BlueTooth control
• Control with RF remote controller 433MHz of the system

• Events/Commands based actions
• programs/scenes for ON/OFF outputs, dimmers, measurement and regulations
• advanced scheduler-calendar for unattended and cyclic operations
• IR codes database for remote control of each EthernetRoomManager from standard SONY (SIRC) Remote Controller
• IR codes database for remote control of external Audio/Video systems from ERM
• access control and restrictions, function masks, authorized RFID (Mifare) card lists
• programmable events assigned to digital inputs (on/off) for emulation traditional instalations with switches and user interactions
• programmable events assigned to measurement inputs threasholds (Min, Max) for regulation purposes

• RoomManager Controller (RM) - integrated control, management, regulation, IR remote control for Rooms, flats, etc.
• HeatManager Controller (HM) - integrated control, management, central heating, ventilation, recuperation, solar system, boiler room, bonfire, regulation, hat water buffer.
• ExternalManager Controller (EM) - integrated control, management, drives, rollers, gateways. (mature product should be replaced by CommManager/LevelManager or eHouse.PRO in current installations)
• CommManager Controller (CM) - Gates, Gateways, Drives, Servos Control, integrated security system with SMS notification
• LevelManager Controller (LM) - variant of CommManager with single outputs, integrated security system with SMS notification
• eHouse PRO controller which can replace ExternalManager, CommManager/LevelManager controller for larger and hybrid installations
• eHouse Software for Configuration, Remote Control, Graphical Visualization and control, Speech recognition, interfacing and integration to third party products

RoomManager (RM)

• measurement, regulation and control light, temperature, voltage and other physical parameters
• turn on/off control (digital) outputs
• dimming LED lights
• programmable digital (on/off) inputs
• IR remote control of external Audio/Video system (IR transmissison)
• IR remote control of RM (IR reception)
• outputs, dimmers, measurement, regulation programs&scenes (24)
• advanced calendar-scheduler for planed operations (248)
• IR control databases for Audio/Video systems (248)
• IR control databases for RM (248)
• Acces Control and Functions for up to 24 RFID cards
• functionality based on events (commands)
• RS-232 TTL interface for connection optional extensions of system
  • BlueTooth - for wireless remote control
  • Mifare card reader (RFID) - for access control & function limitation applications
• capable to send events to external RMs or eHouse Hybrid architecture

RM Hardware features

• 32 configurable digital outputs (on/off) with relay drivers
• 12 configurable digital inputs (on/off)
• 3 LED dimmers or RGB (Pulse Width Modulation)
• Infrared input and output (for external IR Panel)
• 7 ADC inputs for voltage, temperature, light measurement or any analog sensor (0,3v3)
• RTC for clock and scheduler-calendar
• stabilized power supply
• RS-485 - main eHouse interface
• RS-232TTL - for system extensions (BlueTooth, RFID)

EM differences

• RF 433MHz receiver (instead of IR receiver). RF remote control with dedicated miniature eHouse RF controllers with dynamic code (KEELOQ) for security system control

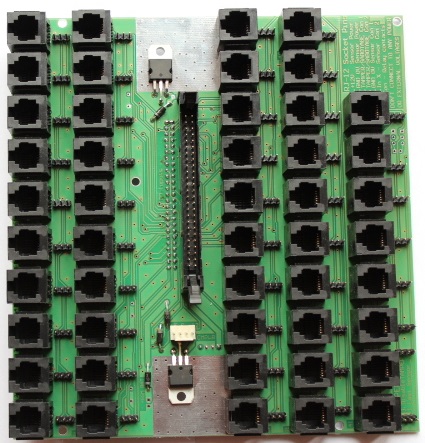

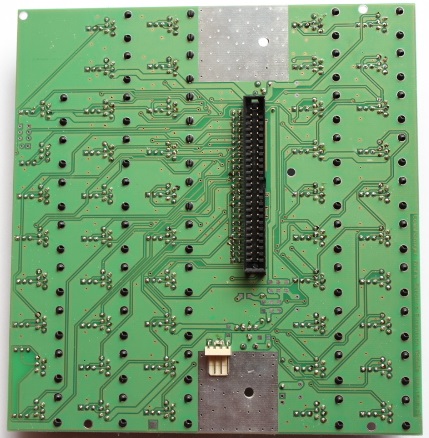

• RS-232TTL interface with I/O Expander (up to 48 security inputs) support for security system (instead of BlueTooth and RFID alghoritms for RM)
• 13 pair of outputs for drives, gateways, doors control in somfy standard (close, open, stop) (instead of standard single outputs)
• 1 output for wicket control
• 2 standard outputs (on/off) (eg disable external sockets)
• Horn, Light - Security Outputs
• RF support (instead IR for RM)
• security programs + security zone (instead standard programs)
• RF controlers database with zones settings (instead of IR)

HM differences

• 16 ADC inputs for temperature measurement of whole heating-cooling and boiler room equipement (instead 8 in RM)
• 21 dedicated outputs with relay drives - for switching pumps, aquators, electro cut-off, recuperation servos, auxiliary fans, etc,(instead 32 for RM)
• 12 auxialy output for notification leds - for signaling bonfire, heat water tank status, and critical alarm situations (instead 12 (on/off) inputs in RM)
• RS-232TTL port for integration and control of AMALVA REGO air handling device (recuperation) automatically from eHouse
• HeatManager require dedicated Firmware variant

RoomManager variants

eHouse RS-485 switch-boards

• RoomManager controller
• Relay modules with DIN sockets and relays 230V/16A (18 or 36)
• Power supply for eHouse RS-485 and LED lights 12V/8A
• Metal cover with key for closing and sealing
• IR external panel for remote control (TX, RX) and temperature, light measurement
• Low voltage flat cables for inputs (switches) and IR panel connections
• montage rails for fast and secure connection

CommManager (CM)/ LevelManager (LM)

• measurement, regulation and control light, temperature and other physical parameters
• control on/off (digital) outputs
• intelligent digital inputs (on/off) with security system functionality
• security zones (24) - contains mask for each sensor and each alarm outputs
• programs for drives, servos with security zone (24)
• measurement, regulation programs (12)
• advanced calendar-scheduler for planed operations (128)
• functionality based on events (commands)
• capable to send events to other ERMs or other eHouse architectures (Hybrid installation)

CM/LM Hardware features

• 70 digital outputs (on/off) with relay drivers for LM mode (single outputs)
• 35 drivers, gateways, gates outputs (on/off) with relay drivers for CM mode (double outputs)
• 48 digital inputs (on/off) with alarm functionality
• 15 ADC inputs for voltage, temperature, light measurement
• RTC for clock and scheduler-calendar
• stabilized power supply
• GSM module for SMS control and alarm notification (CM)
• Alarm, Warning, Early Warning, Monitoring outputs with relays (CM)
• RS-485 interface for supervising eHouse RS-485 system

Accessories:

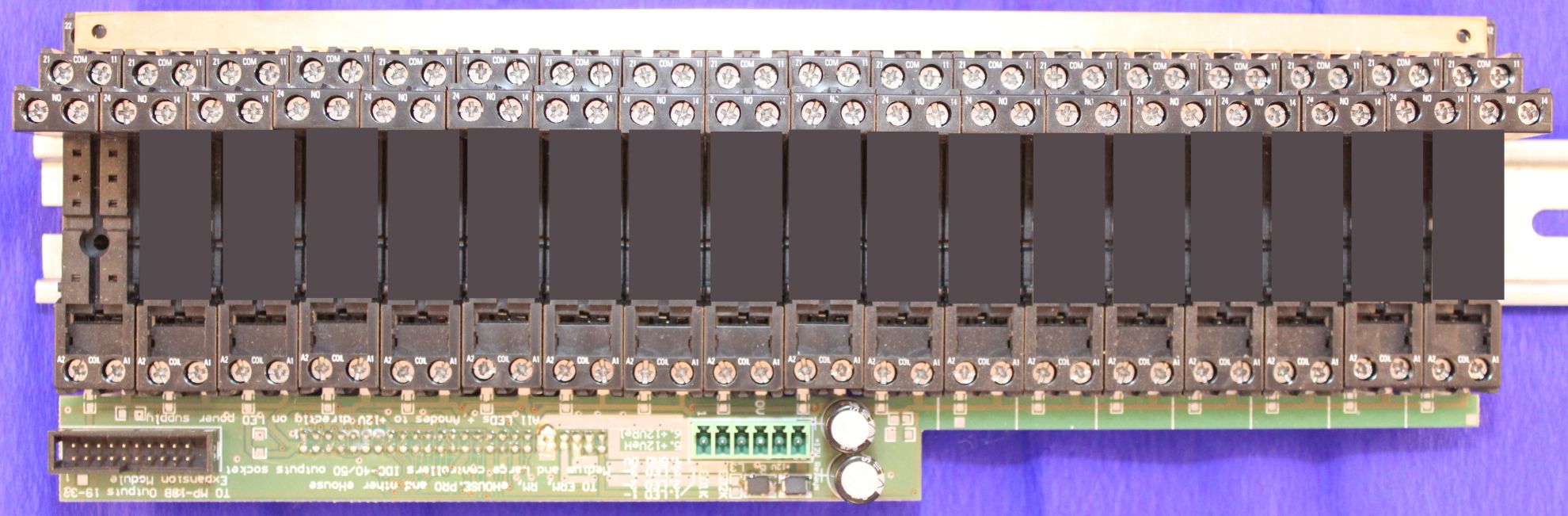

• 18 professional relays 230V/16A with DIN/TH sockets (45mm insulation between electronics and 110-230V mains)
• PCB for direct connection to eHouse controllers (realizes internaly all 40 cable connections)
• common contact short rail (realizes all ~36 cable connections for one phase/voltage of power supply). It could be cut for multi-phase or voltage power supplies

Software:

• Windows - Configuration
• Java (Windows, Linux, and other with JAVA support): Graphical Visualization, Control and Management - via WiFi, Ethernet, Internet
• Android - Graphical Visualization, Control and Management, Speech recognition (voice control) - via WiFi, Internet, SMS
• Linux Server software (including Web Browser support) (x86,x64, ARM6, ARM7: 1,2,4 cores)
• Programming Libraries: C, Java, Java Android, C# (.Net, .Net CF), Delphi
• CorelDraw Scripts for creating individual Visualization views and templates
